GYC8A/GYTC8Y Aerial Armored Self-supported Mini Figure 8 Fiber Optic Cable 8 Core 12 24 48 Core



48 Core Overhead Self Supporting Fiber Optic Cable Singlemode Outdoor GYTC8S

Overhead Self Supporting 48 Core Fiber Optica Cable Singlemode Outdoor GYTC8S

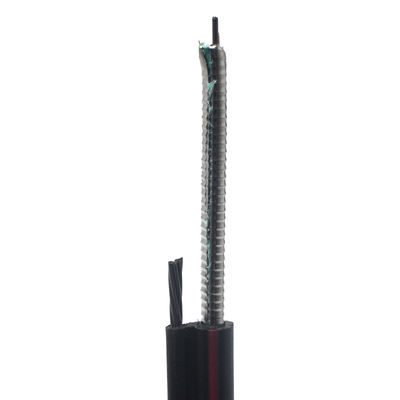

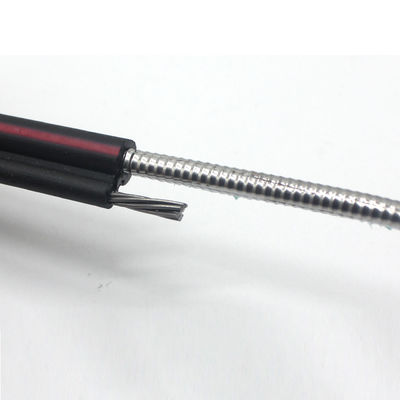

GYTC8S cable, singlemode/multimode fibers are positioned in the loose tubes, while

the loose tubestrand together around metallic central strength member into a compact

 and circular cable core,and the water blocking materials are distributed into interstices

of it. After a PSP/APL is applied around the cable core, this part of cable accompanied with the stranded wires as the supporting part are completed with a PE sheath to be a

figure-8 structure.

Specification:

Item Name:Fiber optical cable GYTC8S.

Optical Mode:Singlemode/Multimode.

Fiber Diameters:G652, G655, 50/125μm, 62.5/125μm.

Total Fiber Count:2-144.

Bend Radius(Static/Dynamic):10D/20D.

Working Life:More than 25 years.

Application:Aerial self-supporting,Local network,Local network,Long distance network communication.

Structure:

• Steel wire strands have extremely high tensile strength, which is convenient for self-supporting overhead laying and reduces installation costs
• With good mechanical properties and temperature characteristics
• Material of loose tube has good hydrolysis resistance and high strength
• The loose tube is filled with special gel, which protect the optical fiber
• Take the following measures to ensure the waterproof performance of the optical cable
• Single metallic wire center reinforced core
• Filled with special Water-blocking material in loose tube
• Complete cable core filling

Moisture-proof layer of plastic-coated steel

Standards and Certificate:

Fiber optical cable complies with Standard YD/T 769-2003,IEC60794-1

Certificate:CE ROHS ISO9001

Characteristics
1. Good mechanical and temperature performance
2. High strength loose tube that is hydrolysis resistant
3. Special tube filling compound ensure a critical protection of fiber
4. Crush resistance and flexibility

Product Details

FAQ

Q1:What are the advantages of your price?

A1: We have our own factory, professioanl machinery equipment . We can meet the price advantage of products with the same quality parameters, and we promise to achieve a price of 1%-10% lower than that of our peers.

Q2: What is your quality advantage?

A2: We strictly according to the ISO9001 quality management system, insisting "Enough Cores, Enough Meters, High Quality, High Performance". Providing our customers with higher quality products and services.

Q3. Do you support customized brands?

A3: Yes! The professional OEM services will be welcomed to us. Our factory accepts to make the logo free for bulk orders.

Q4: What are the benefits of working with you?

A4: New customers can enjoy AIXTON’s stock and annual year-end dividends, and support long-term cooperative customers to upgrade to global agents and enjoy more discounted prices.
